[FanOpti22] Fan speed optimization, pressure setpoint shift
Program block, name / node subtype: [FanOpti22] Fan speed optimization, pressure setpoint shift
Library hierarchy: Ventilation and air conditioning equipment
Family: FanOpti
Project tree | Diagram |
|---|---|
|
|
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.

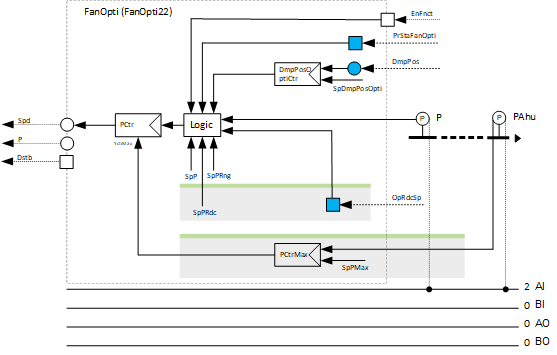

Fan speed optimum with pressure setpoint shift
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
P | Pressure | AI: Analog input | Yes, 4 | Yes, 2 | |
PCtr | Pressure controller | Ctr: Controller | N/A | N/A | |
SpP | Pressure setpoint | ACnfVal: Analog configuration value | No | Yes, 4 | |
SpPRng | Setpoint pressure range | ACnfVal: Analog configuration value | No | Yes, 4 | |
SpDmpPosOpti | Setpoint optimum damper position | ACnfVal: Analog configuration value | N/A | Yes, 4 | |
DmpPosOptiCtr | Controller optimum damper position | Ctr: Controller | N/A | N/A | |
Description |
|---|
Maximum pressure limitation Elements that belong to this option: Setpoint pressure maximum | ACnfVal: Analog configuration value Maximum pressure limitation controller | Ctr: Controller Pressure close to air handler | AI: Analog input |
Pressure setpoint reduced Element that belongs to this option: Pressure setpoint, reduced | ACnfVal: Analog configuration value |
