[Fan28] Fan, pressure-controlled, fan optimization
Program block, name / node subtype: [Fan28] Fan, pressure-controlled, fan speed optimization
Library hierarchy: Ventilation and air conditioning equipment
Family: Fan

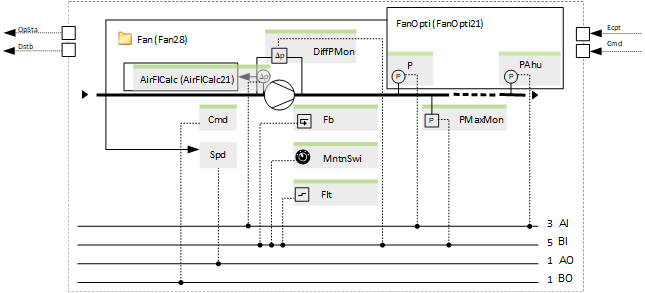

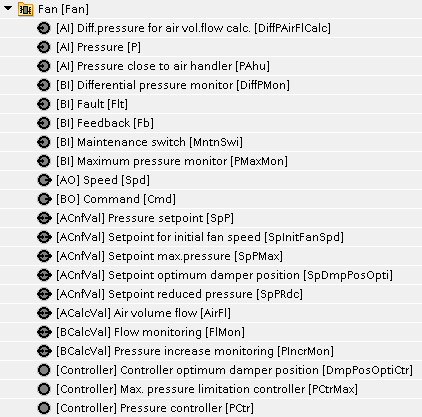

Project tree | Diagram |
|---|---|
|
|

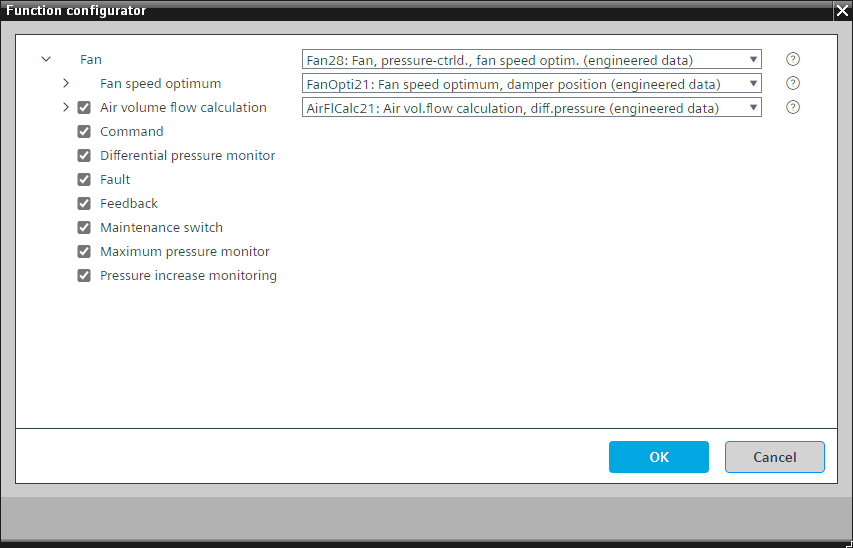

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls a variable speed fan and performs pressure control.
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Spd | Speed | AO: Analog output | No | Yes, 2 | |
FanOpti | Fan speed optimum | [FanOpti21] Fan speed optimization, direct fan speed control | N/A | N/A | |
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
Cmd | Command | BO: Binary output | No | Yes, 4 | |
Flt | Fault | BI: Binary input | Yes, 4/5 | No | |
MntnSwi | Maintenance switch | BI: Binary input | Yes, 5 | No | |
DiffPMon | Differential pressure monitor | BI: Binary input | Yes, 4 | No | |
Fb | Feedback | BI: Binary input | Yes, 4 | No | |
PIncrMon | Pressure increase monitoring | BCalcVal: Binary calculated value | Yes, 4 | No | |
AirFlCalc | Air volume flow calculation | [AirFlCalc21] Air volume flow calculation, as a function of differential pressure | N/A | N/A | |
PMaxMon | Maximum pressure monitor | BI: Binary input | Yes, 4 | No | |
If the pressure does not increase within a defined time period, a monitoring event is generated (if this optional element is there).
