[CenHcLgt21] Central human lighting 21, internal HCL function
Program block, name / node subtype: [CenHcLgt21] Central human lighting 21, internal HCL function
Library hierarchy: Coordination
Family: CenHcLgt
Project tree | Diagram |
|---|---|
|
|
Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.

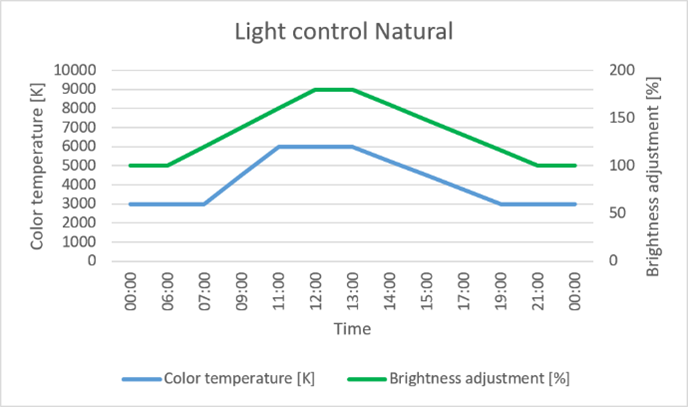

The function block [HCL] Human-centric lighting (HCL) calculates a brightness adjustment value and a color temperature value.
By default, it is set as follows:
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
LgtBrgtAdj | Lighting brightness adjustment | ACalcVal: Analog calculated value | No | No | |
LgtSpTColor | Lighting color temperature setpoint | ACalcVal: Analog calculated value | No | No | |
CenHcLgtMst | Manager for central human-centric lighting | GrpMaster: Group manager | N/A | N/A | |
