[HcrSenMon21] Sensor monitoring for heating circuit
Program block, name / node subtype: [HcrSenMon21] Sensor monitoring for heating circuit
Library hierarchy: Heating functions
Family: HcrSenMon
Project tree | Diagram |
|---|---|
|
|
Configurator

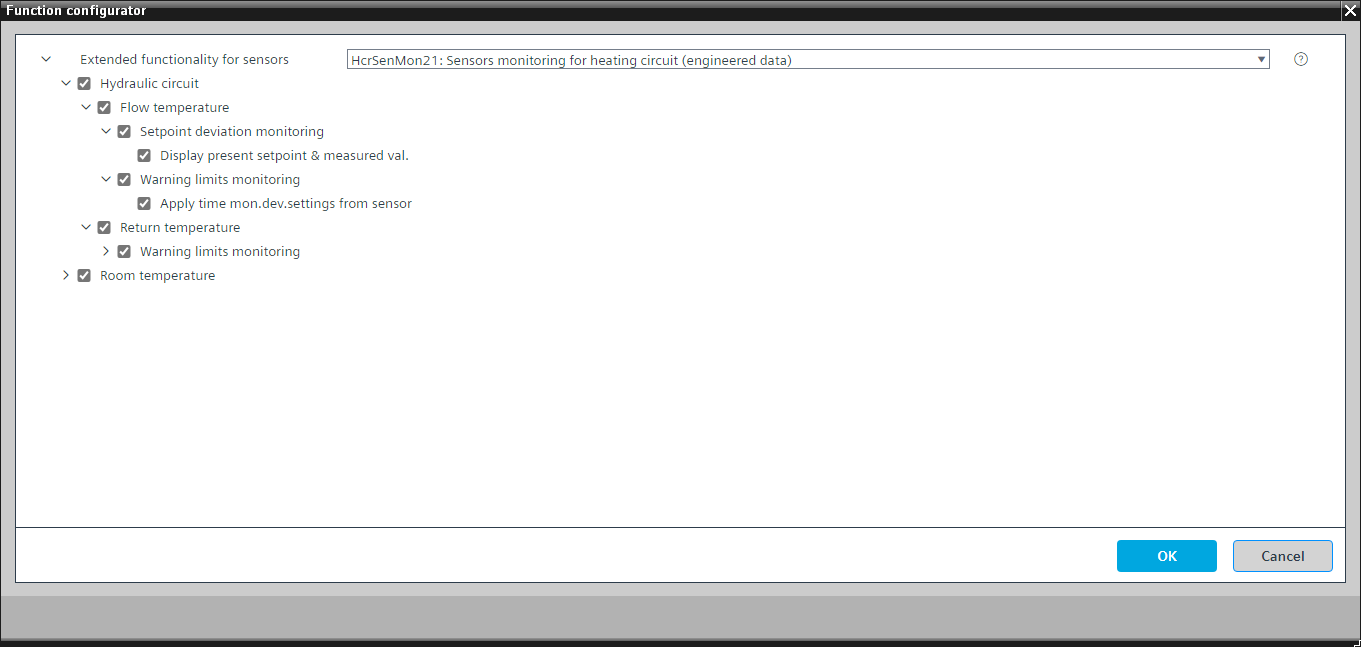

Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Sensor monitoring for heating circuit

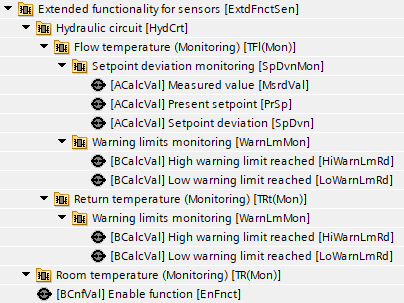

Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
EnFnct | Enable function | BCnfVal: Binary configuration value | N/A | No | |
All elements in the table are optional and can have a warning limits monitor and/or a setpoint deviation monitor.
Name | Description | Warning limits | Setpoint deviation |
|---|---|---|---|
HydCrt'TFl(Mon) | Hydraulic circuit'Flow temperature (Monitoring) | Yes | Yes |
HydCrt'TRt(Mon) | Hydraulic circuit'Return temperature (Monitoring) | Yes | No |
TR(Mon) | Room temperature (Monitoring) | Yes | No |
