[HCGenSenMon21] Sensor monitoring for heating/cooling generation
Program block, name / node subtype: [HCGenSenMon21] Sensor monitoring for heating/cooling generation
Library hierarchy: Universal functions
Family: HCGenSenMon

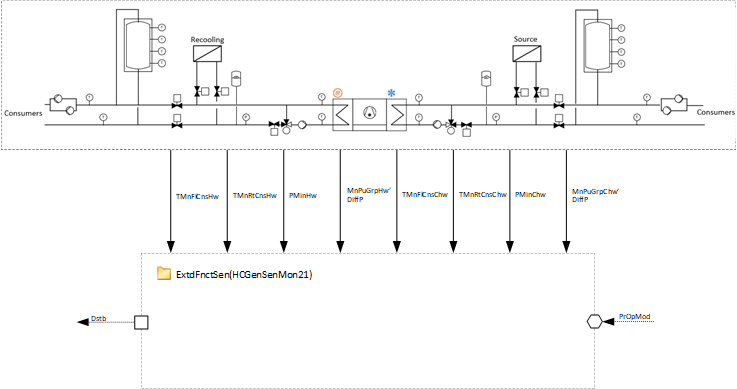

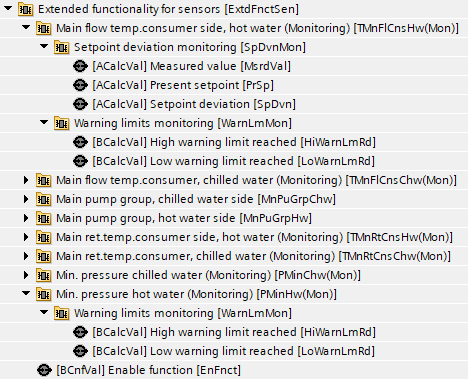

Project tree | Diagram |
|---|---|
|
|

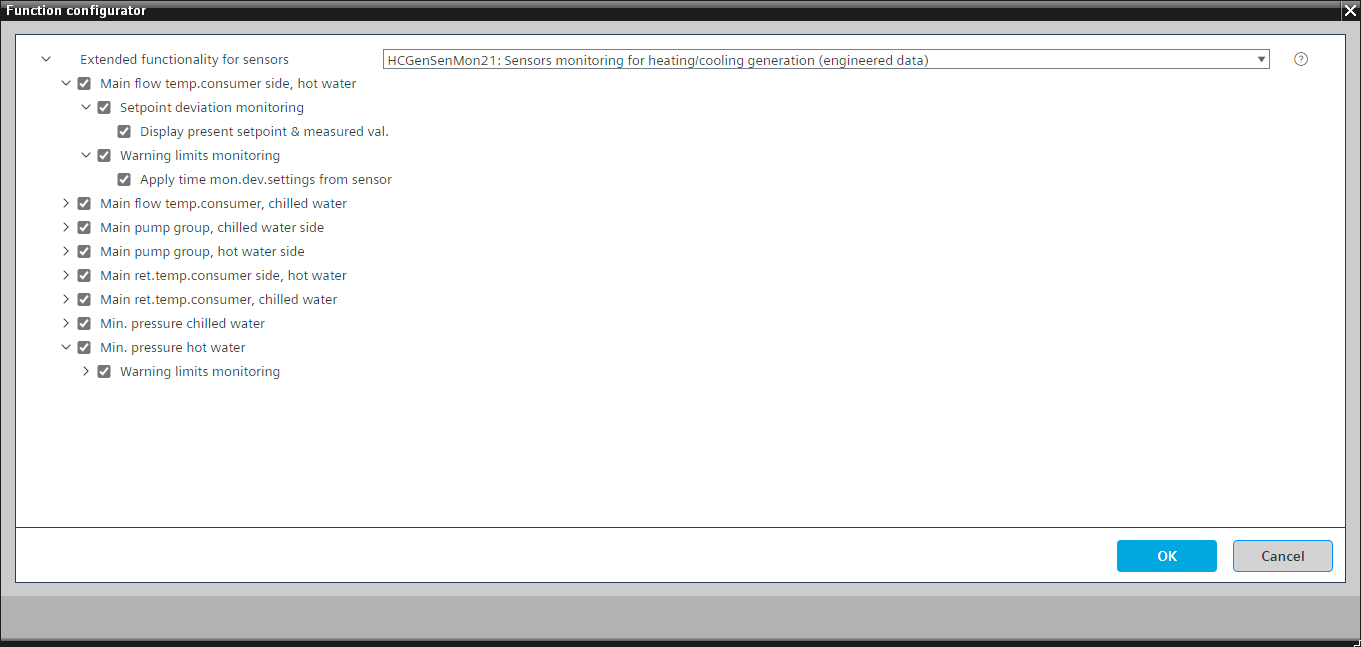

Configurator
Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Sensor monitoring for heating/cooling generation
Name | Description | Type | Alarm / Notification class | Trend / Type | |
|---|---|---|---|---|---|
EnFnct | Enable function | BCnfVal: Binary configuration value | N/A | No | |
All elements in the table are optional and can have a warning limits monitor and/or a setpoint deviation monitor.
Name | Description | Warning limits | Setpoint deviation |
|---|---|---|---|
TMnFlCnsHw(Mon) | Main flow temperature consumer side, hot water (Monitoring) | Yes | Yes |
MnPuGrpHw'DiffP(Mon) | Main pump group, hot water side'Differential pressure (Monitoring) | Yes | Yes |
TMnRtCnsHw(Mon) | Main return temperature consumer side, hot water (Monitoring) | Yes | No |
PMinHw(Mon) | Minimum pressure hot water (Monitoring) | Yes | No |
TMnFlCnsChw(Mon) | Main flow temperature consumer side, chilled water (Monitoring) | Yes | Yes |
MnPuGrpChw'DiffP(Mon) | Main pump group, chilled water side'Differential pressure (Monitoring) | Yes | Yes |
TMnRtCnsChw(Mon) | Main return temperature consumer side, chilled water (Monitoring) | Yes | No |
PMinChw(Mon) | Minimum pressure chilled water (Monitoring) | Yes | No |
