[Erc23] Energy recovery, run-around coil, temperature-controlled
Program block, name / node subtype: [Erc23] Energy recovery, run-around coil, temperature-controlled
Library hierarchy: Ventilation and air conditioning equipment
Family: Erc

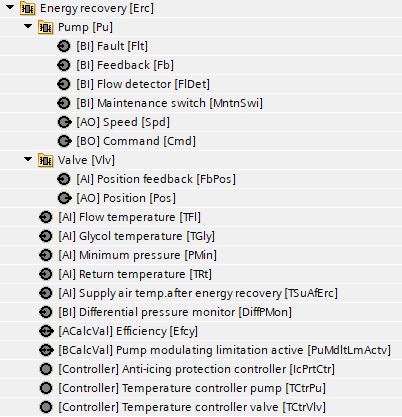

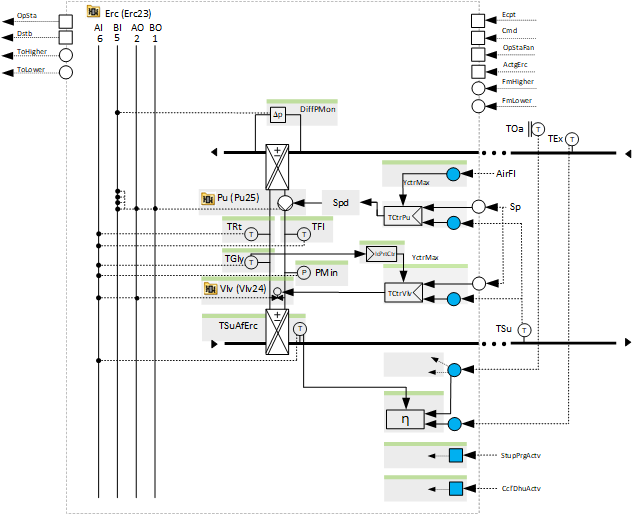

Project tree | Diagram |
|---|---|
|
|
|

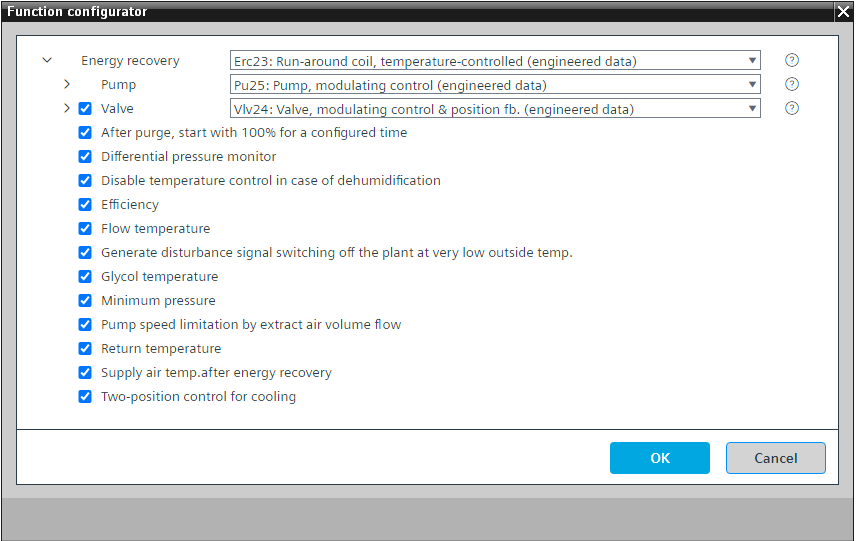

Configurator


Program blocks are stored in the library without I/Os. Use the auto-create and auto-connect functions to create I/Os and/or to connect them to the interface blocks, e.g., R_A, CMD_B. Alternatively, take the I/Os from the folder containing the predefined I/Os in the library and/or from the plant and connect them to the interface blocks.
Controls the supply air temperature (heating and cooling) by changing the pump speed of a variable speed pump and valve position of an optional bypass valve.

The temperature controller dynamically changes its control action for heating or cooling based on conditions from another program block.

The minimum and maximum pump speed can be parameterized in the program. The maximum pump speed can be defined by an optional logic for its limitation following the extract air volume flow.
There are two temperature controllers that are in sequence:
- A temperature controller for the pump
- A temperature controller for the optional valve
Sequence for heating
The temperature controller for the valve increases its output and closes the bypass valve while the pump runs at minimum speed. When the temperature controller for the valve reaches its maximum (bypass valve is closed), the temperature controller for the pump takes over and increases the pump speed to the maximum pump speed.
Sequence for cooling
The temperature controller for the valve is set at its maximum and the temperature controller for the pump takes over. The temperature controller for the pump either goes to its maximum if the option "Two-position control for cooling" is active or continuously increases the pump speed to its maximum.
This program block has the following optional functions:
Option: Valve (1xAO, 1xAI)
Controls the position of a bypass valve that increases or reduces the power of the energy recovery (Vlv24).
Option: After purge, start with 100 % for a configured time
Provides an interface to the state of the "Start-up purge" function and logic to keep the energy recovery at 100 % for a configurable time, e.g., 4 minutes, after the "Start-up purge" function has finished.
Option: Differential pressure monitor (1xBI)
Reads the signal from a differential pressure monitor over the energy recovery. If the differential pressure increases due to ice forming on the surface of the energy recovery aggregate, it reduces the output of the temperature controller for the valve to perform anti-icing protection.
Option: Disable temperature control in case of dehumidification
Provides an interface (most likely to the cooling coil) and logic to disable the temperature control in case of dehumidification to not preheat the air when the cooling coil performs dehumidification.
If the energy recovery is set for cooling, it runs at 100 %.
Option: Efficiency
Calculates the efficiency of the energy recovery. The function block MON_ERC is used in the program.

This efficiency calculation needs the option "Supply air temperature after energy recovery".
Option: Flow temperature (1xAI)
Reads the signal from a flow temperature sensor.
Option: Generate disturbance signal switching off the plant at very low outside temperature
If there is a problem with the energy recovery at very low outside temperature, the heating power may be insufficient, and the resulting supply air temperature may drop to a level that is above the frost protection, but still very uncomfortable. This is why a disturbance signal that shuts down the air handling unit plant is generated.
Option: Glycol temperature (1xAI)
Reads the signal from the glycol temperature sensor and performs anti-icing protection with a PID controller that limits the output of the temperature controller to the valve and continuously opens the bypass.
Option Minimum pressure (1xAI)
Reads the signal from a pressure sensor in the glycol circuit and generates an alarm if the pressure is too low.
Option: Pump speed limitation by extract air volume flow
Calculates an optimal maximum pump speed depending on the air volume flow.
To achieve an optimal energy recovery efficiency, the criteria defined by the following equation must be met:

Heat capacity of the air = Heat capacity of the heat transfer media
= Mass flow air
= Specific heat capacity of air
= Mass flow heat transfer medium
= Specific heat capacity of heat transfer medium
During the commissioning, the relationship between Ṁw and the pump speed can be measured. Based on this, the relationship between the mass flow air and the pump speed is calculated and set up in the program (CHAR_LIN). This helps to keep the mass flow of the heat transfer medium at the optimum level and prevents it from being unnecessarily high.
If the pump speed is not limited, there is likely a range, e.g., 70-100 %, where the output of the temperature controller increases while the power of the energy recovery does not increase. The temperature controller keeps the token until the maximum output is reached. The maximum output is not limited by the comparison of the heat capacities. It takes longer for the next aggregate in the temperature control sequence to be released for control and the total power output increases again.
Option: Return temperature (1xAI)
Reads the signal from a flow temperature sensor.
Option: Supply air temperature after energy recovery (1xAI)
Reads the signal from a supply air temperature sensor after energy recovery.

This is an important sensor for calculating the utilization rate of the energy recovery with ErcUtzRate21.
Option: Two-position control for cooling
2-position control mode for the temperature controller in case of cooling.
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
Pu | Pump | N/A | N/A | |
TCtrPu | Temperature controller pump | Ctr: Controller | N/A | N/A |
Name | Description | Type | Alarm / Notification class | Trend / Type |
|---|---|---|---|---|
Vlv
| Valve | N/A | N/A | |
Further elements that belong to this element: TCtrVlv | Temperature controller valve | Ctr: Controller | ||||
TGly
| Glycol temperature | AI: Analog input | No | Yes, 2 |
Further elements that belong to this element: IcPrtCtr | Anti-icing protection controller | Ctr: Controller | ||||
DiffPMon | Differential pressure monitor | BI: Binary input | Yes, 8 | No |
TSuAfErc | Supply air temperature after energy recovery | AI: Analog input | No | Yes, 2 |
Efcy | Efficiency | ACalcVal: Analog calculated value | No | No |
TFl | Flow temperature | AI: Analog input | Yes, 4 | Yes, 2 |
TRt | Return temperature | AI: Analog input | Yes, 4 | Yes, 2 |
PMin | Minimum pressure | AI: Analog input | Yes, 4 | Yes, 3 |
Description |
|---|
|
2-position control for cooling |
After purge start with 100 % for a configured time. |
Generate disturbance signal that switches off the plant at very low outside temperature. |
Disable temperature control in case of dehumidification |
Pump speed limitation by extract air volume flow Element that belongs to the further options: PuMdltLmActv | Pump modulating limitation active | BCalcVal: Binary calculated value |
